How to activate CGDI CG100X Programmer

This post will guide you on how to activate CGDI CG100X Programmer.

Step 1. Please download and install the newest software:

https://mega.nz/folder/3CIXXDJC#jJ4CdJ9T-eEYhkBYi6Z65A

Step 2. Connect the CG100X USB cable and 12V 2A power adapter and open the software, the software will show you your instrument needs to be activated, click ok.

Step 3. Register an account and log in.

If you already have an account from CGMB & CGDI & CGPRO & CG100, click OK and log in directly.

If you don't have an account, register for an account. Click ok and choose "No account? Create one!".

(1) Better to type this information on a text file and save, copy, and paste it into the cg100X software when creating an account.

(2) Better to use a simple username and password, it's easy to remember in the future. (For example, my account username is Lisa and my password is 12345678)

(3) After entering all the information, click the "Submit" button. and an account has been created successfully.

(4) Copy the username and password and log in. Then the tool will be activated successfully.

(5) If you cannot receive the code by phone number or email address, please change the server connection area one by one and try again.

After you have successfully created an account, log in to the account.

Step 4. After logging in, click on "Activate the device now".

Then bind your device to your account, and click "OK".

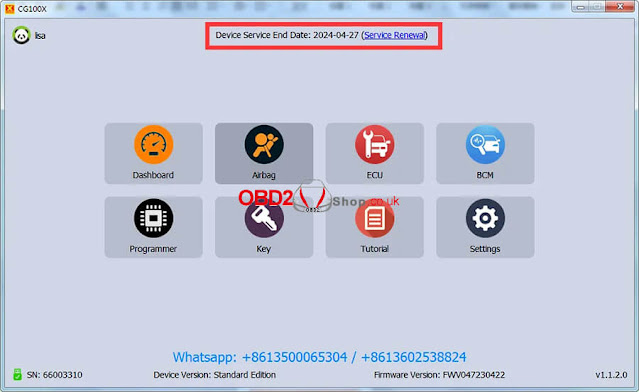

The tool has been activated successfully and you can see the subscription time.

For more technical services, please follow https://www.obd2shop.co.uk/service/

The Fastest Way to Add BMW E-series Key with AK90

Here we introduce the fastest way to add a BWM E-series key with AK90 Key Programmer. By reading a 1997-2006 BMW EWS3 immobilizer PCF7935 chip as an example.

Tool Required

Software: AK90 software

Hardware: BMW AK90 Programmer, EWS module, BMW key

Procedure

Step1. Remove the EWS module from the car which is under the steering wheel.

* DO NOT switch on the ignition if the EWS module has been removed from the vehicle.

Step2. Use carburetor cleaner to remove the conformal coating from the Motorola chip pins.

Step3. Attach the 10-pin connector to both the chip and AK90 programmer to read the Motorola chip and generate a new key.

Open AK90 software:

Connect >> Read EWS >> OK >> OK

Connect the 10-pin cable firmly to the Motorola pins after checking for any leftover conformal coating.

Reading 0D46J(MCU)...wait until 100%

Save the data file.

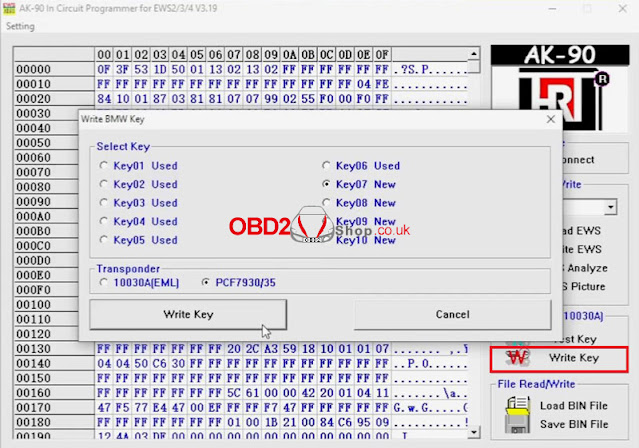

Write Key >> Selected blank key position >> Write key >> PCF7930/35 >> Write key

Put BMW key to AK90 coil, write? Yes

Writing 7930+7935 ... until 100%.

Write key OK.

Step4. Start the car after reconnecting the EWS module. If it doesn't start after 2 attempts, use a diagnostic tool to sync EWS to ECU.
